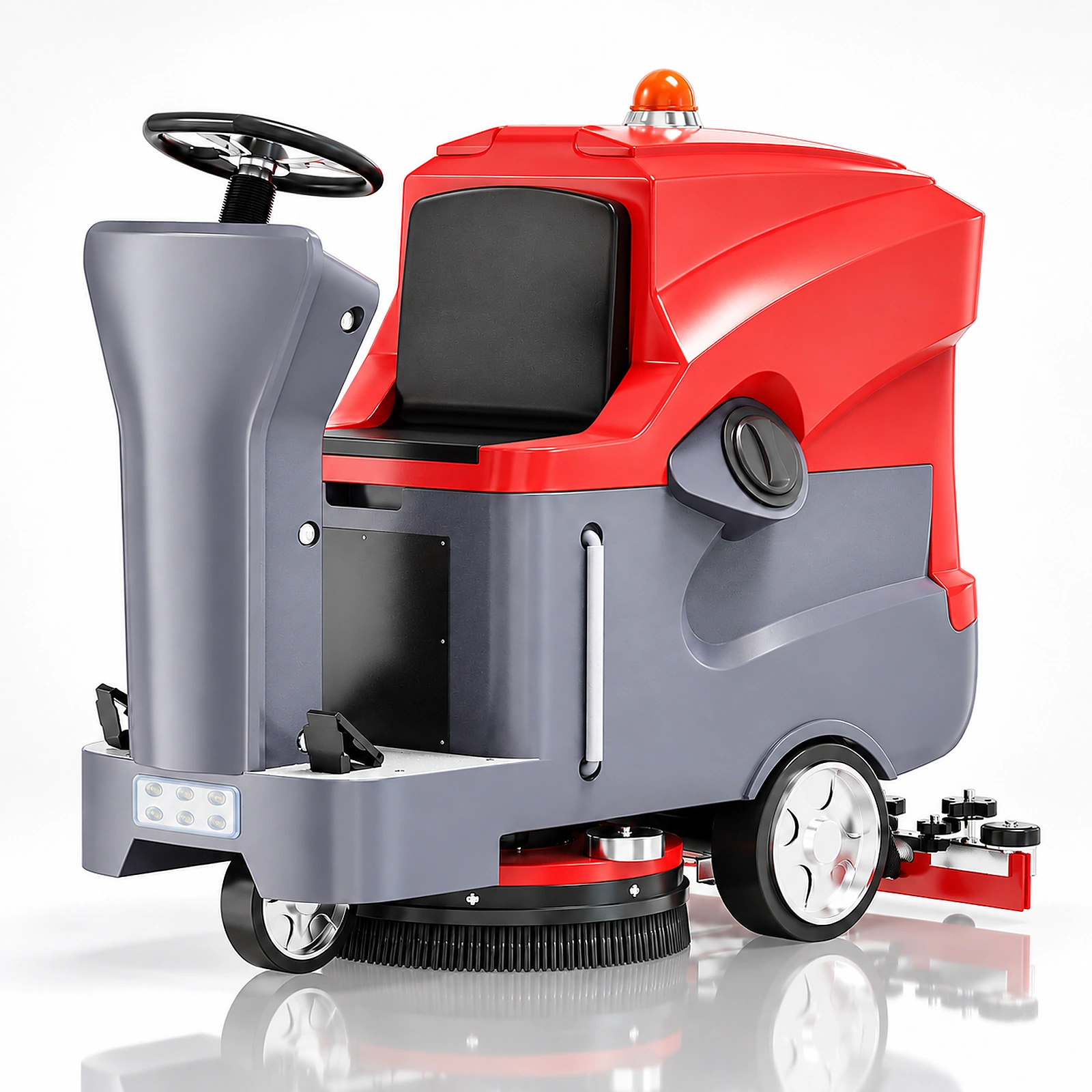

KB-X720 Ride-On Floor Scrubber

SKU: KB-X720

✓ Scrubs and dries floors in one pass.
✓ Suitable for tile, epoxy, resin and concrete floors.
✓ Ideal for factories, warehouses and commercial facilities.
✓ Multiple charger plug options available.

4,000 m²/h
High Efficiency
75 L
Solution Tank
85 L
Recovery Tank
120 Ah
Battery Capacity
Price range: $166.00 through $188.00 pc.

Price excluding shipping & tax.
Better pricing for large quantity.

Currently unavailable for online purchase.

Request a Quote
Warranty: 12 Months.
Global Shipping
Secure Payment

Technical Support

Why Choose This Product

Durable & Reliable

Industrial-grade components

Energy Efficient

Low power consumption, long working time

Easy Maintenance

Tool-free design for quick service

Wide Applications

Suitable for multiple industries

Technical Specifications

Model
KB-X720
Cleaning Width
580 mm
Squeegee Width
860 mm
Cleaning Efficiency
4,000 m²/h
Solution Tank Capacity
75 L
Recovery Tank Capacity
85 L
Brush Diameter
330 mm (13 in) × 2
Brush Motor Power
550 W × 2
Vacuum Motor Power
500 W, 3-Stage
Brush Pressure
30 kgf
Battery Type
Lead-acid / Li-ion
Battery Capacity
120 Ah
Voltage
DC 24V (2×12V)
Runtime
3-4 h
Charging Time
Approx. 6 h
Drive Type
Brush Drive
Working Speed
3 km/h
Max Gradeability
8%
Noise Level
≤60 dBA
Machine Dimensions
1200 × 850 × 1100 mm
Net Weight
220 kg

Dimensions & Packaging

Product measurements and shipping information
KB-X720

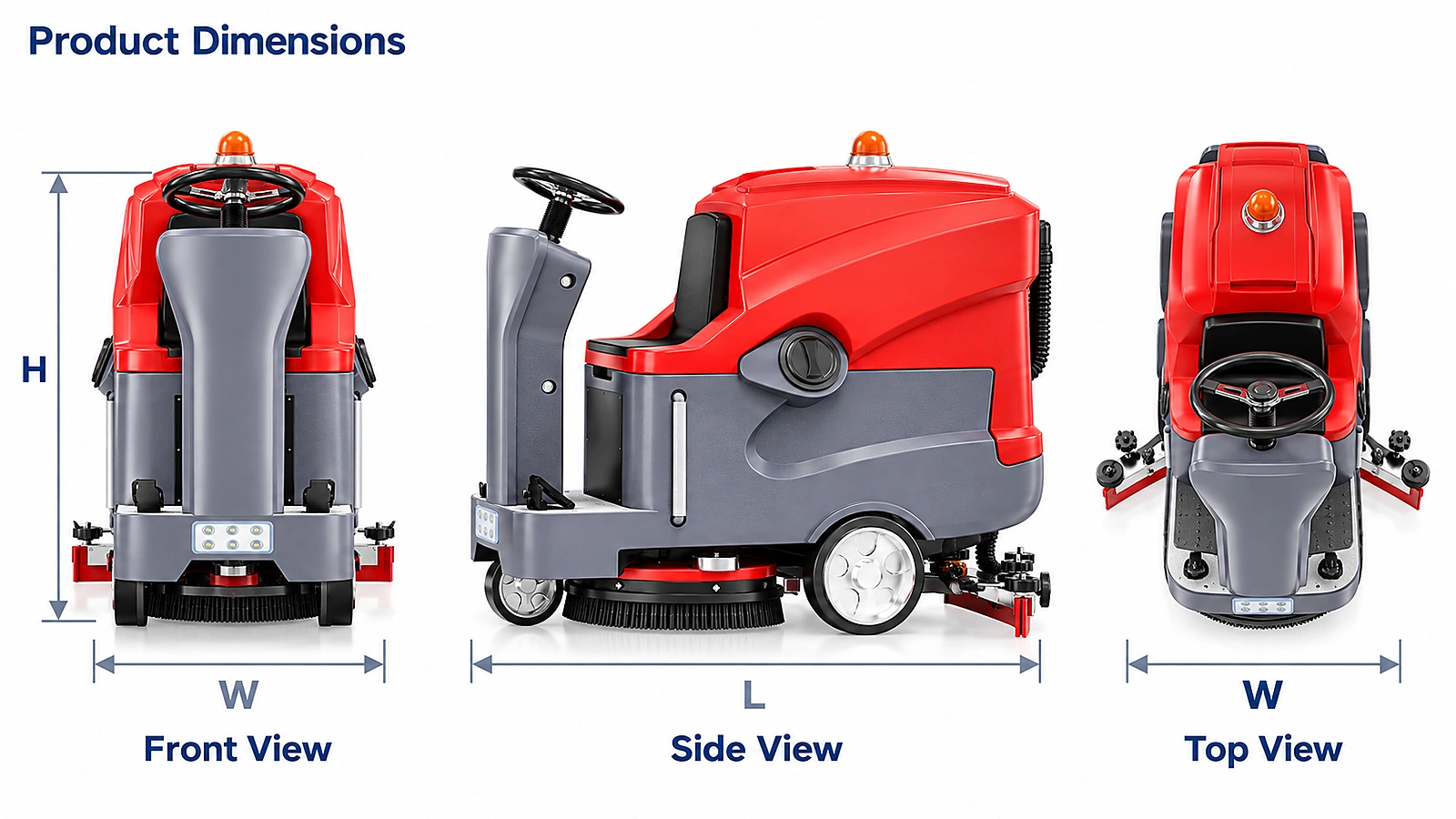

Product Dimensions

Length (L)
1450 mm
Width (W)
640 mm
Height (H)
1200 mm

Packaging Information

Wooden case packaging illustration
Packaging illustration
Packed Dimensions (L × W × H)
1450 × 640 × 1200 mm
Gross Weight
250 kg
Packaging Type
Wooden Crate
Packaging Method
Comes with IPPC mark
Certifications
CE / ISO9001 / RoHS / FCC / RCM / UL

Product Details

Large Support Wheels

Description: Large support wheels help the machine move steadily across indoor hard floors. The wheel assembly supports the chassis and helps operators guide the scrubber along everyday cleaning routes.

Integrated Battery Compartment

A dedicated battery compartment houses the ride-on machine’s power supply within the chassis. Access to the battery pack, terminals and cable connections simplifies routine inspection and planned servicing.

Foot-Operated Travel Control

The electronic foot pedal lets the operator control machine travel while keeping both hands available for steering. Its position in the footwell supports convenient operation from the driving seat.

Controls Within Easy Reach

The key switch, display and operating controls are grouped around the steering position. This centralized layout keeps essential functions within easy reach during everyday cleaning tasks.

Application Scenarios

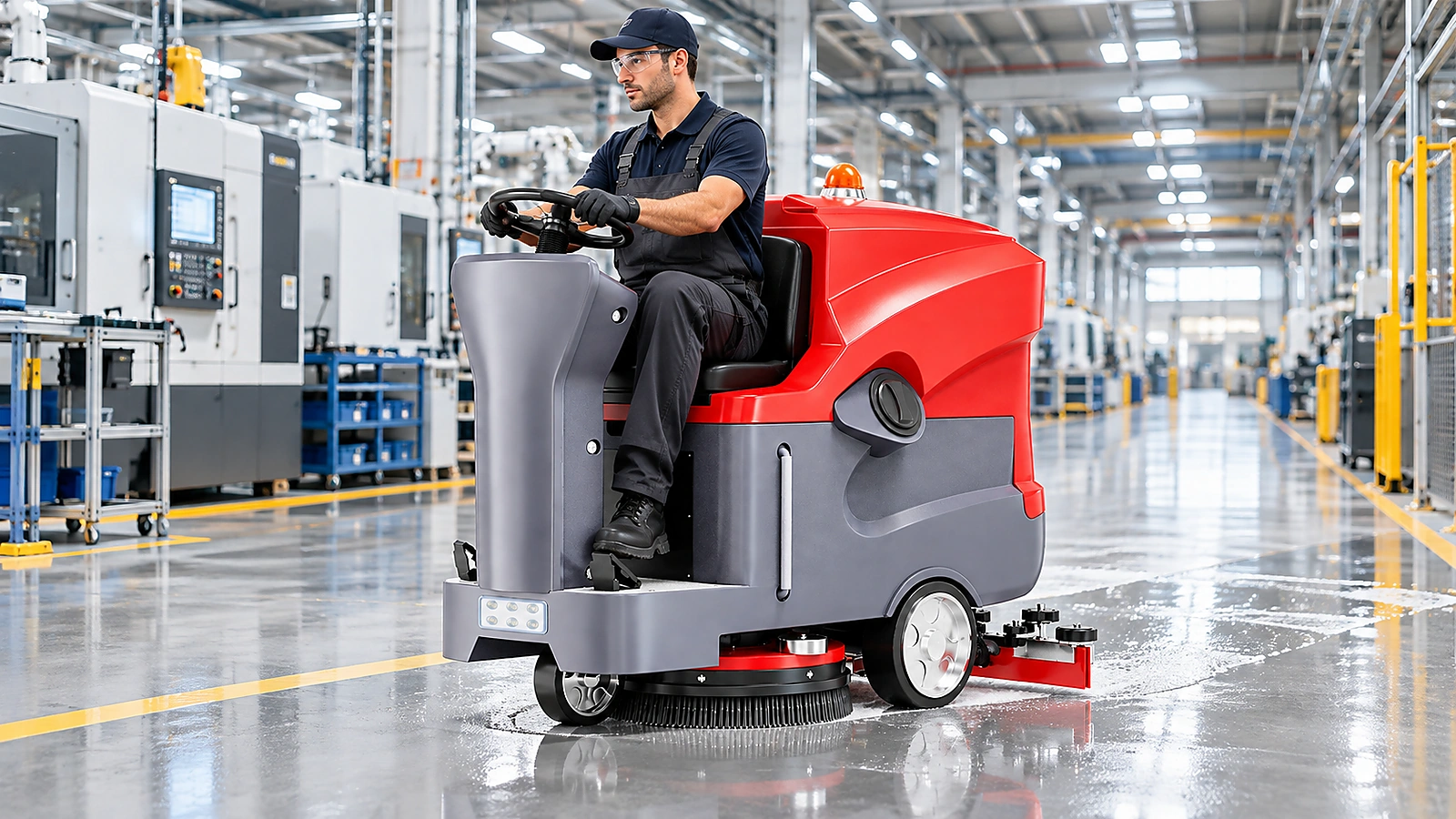

Factory

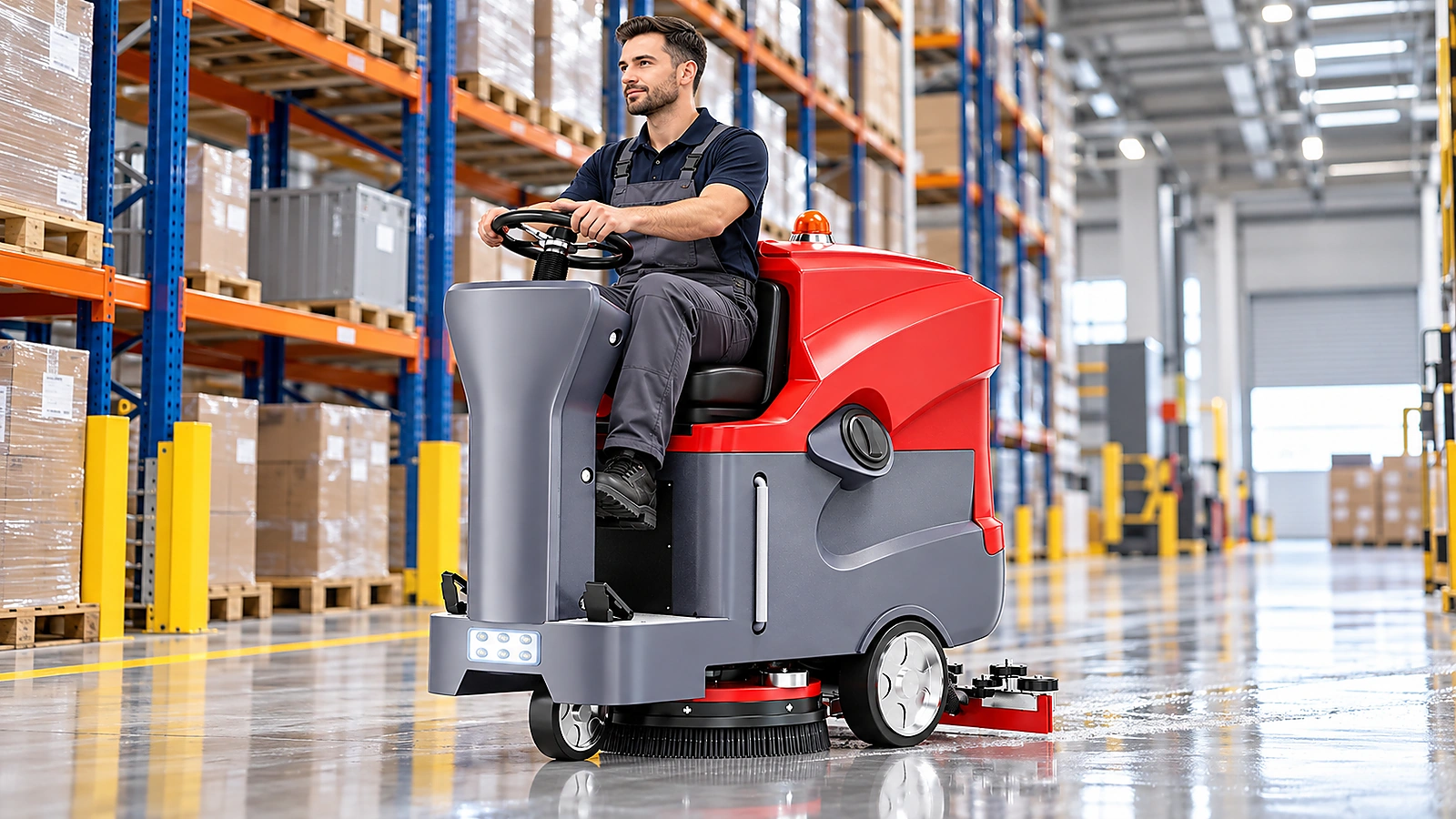

Warehouse

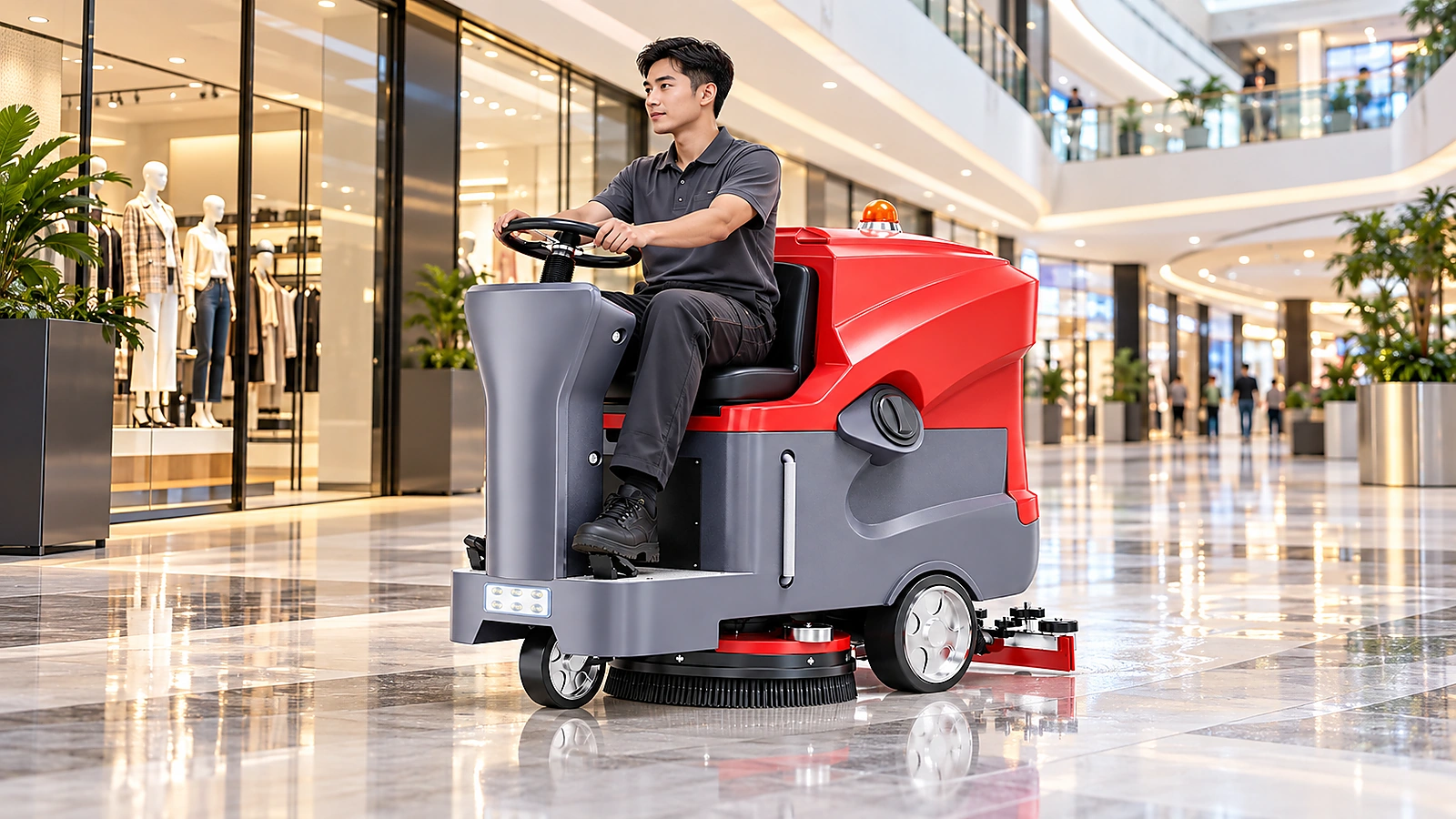

Shopping Mall

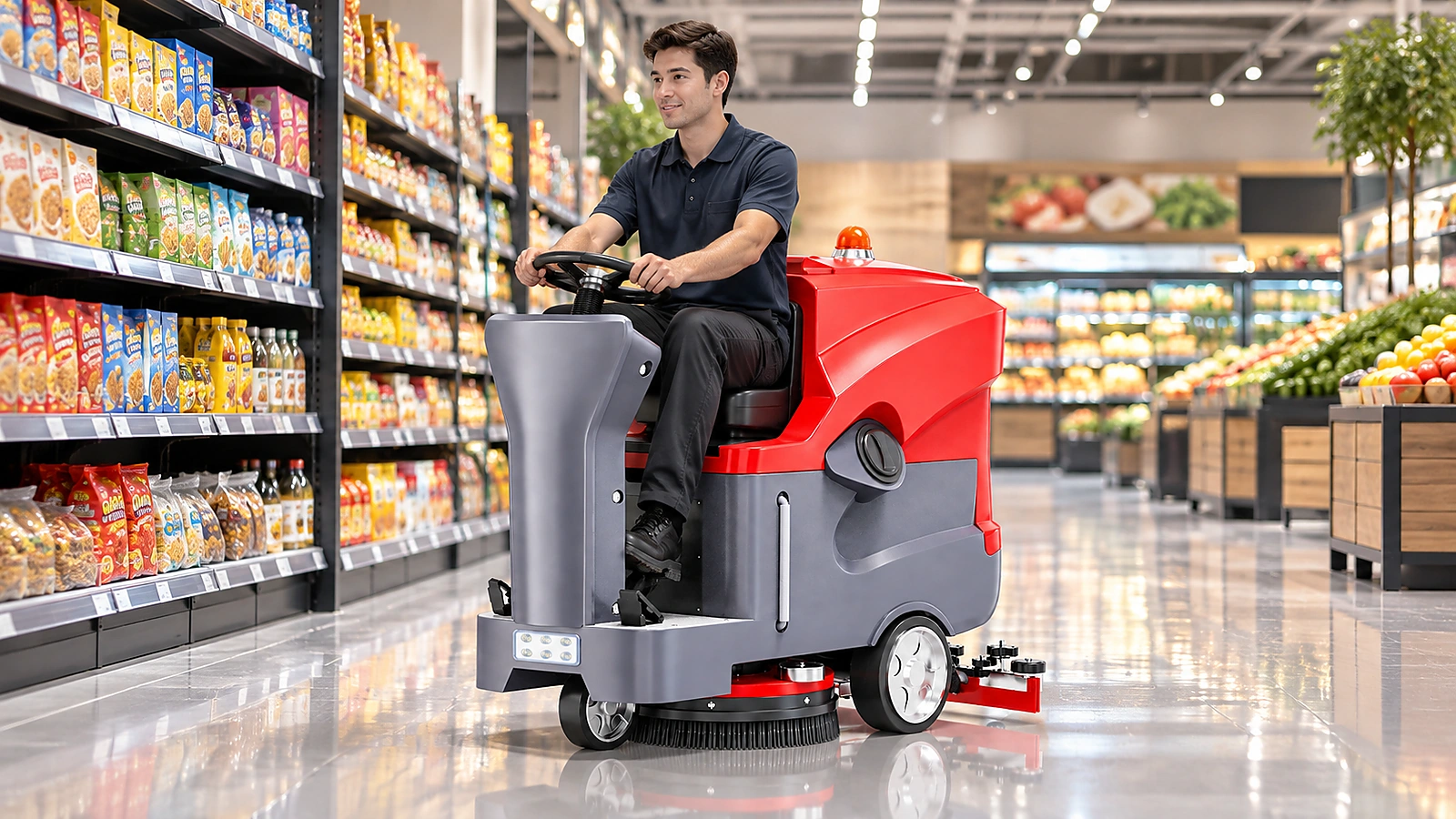

Supermarket

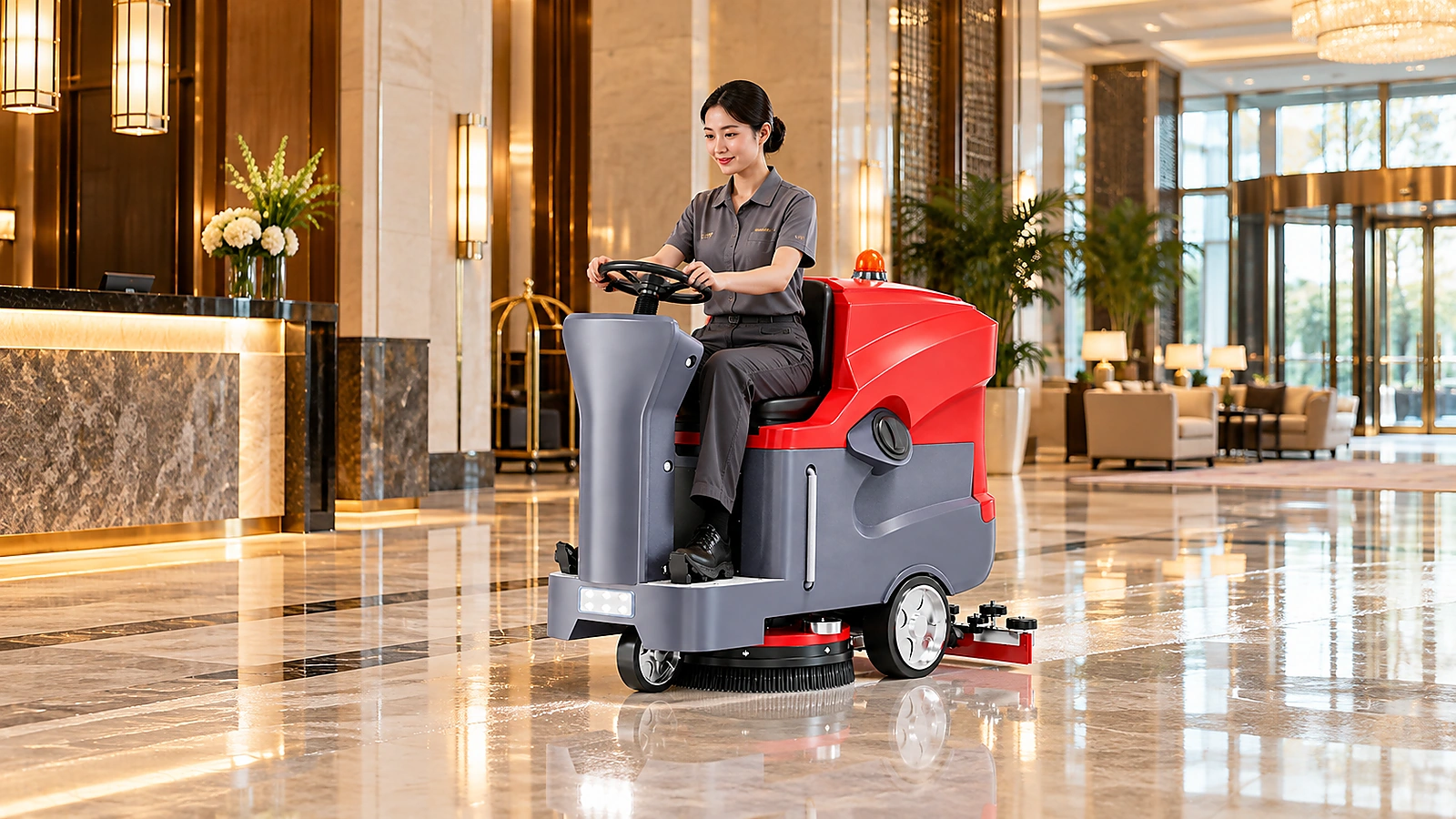

Hotel

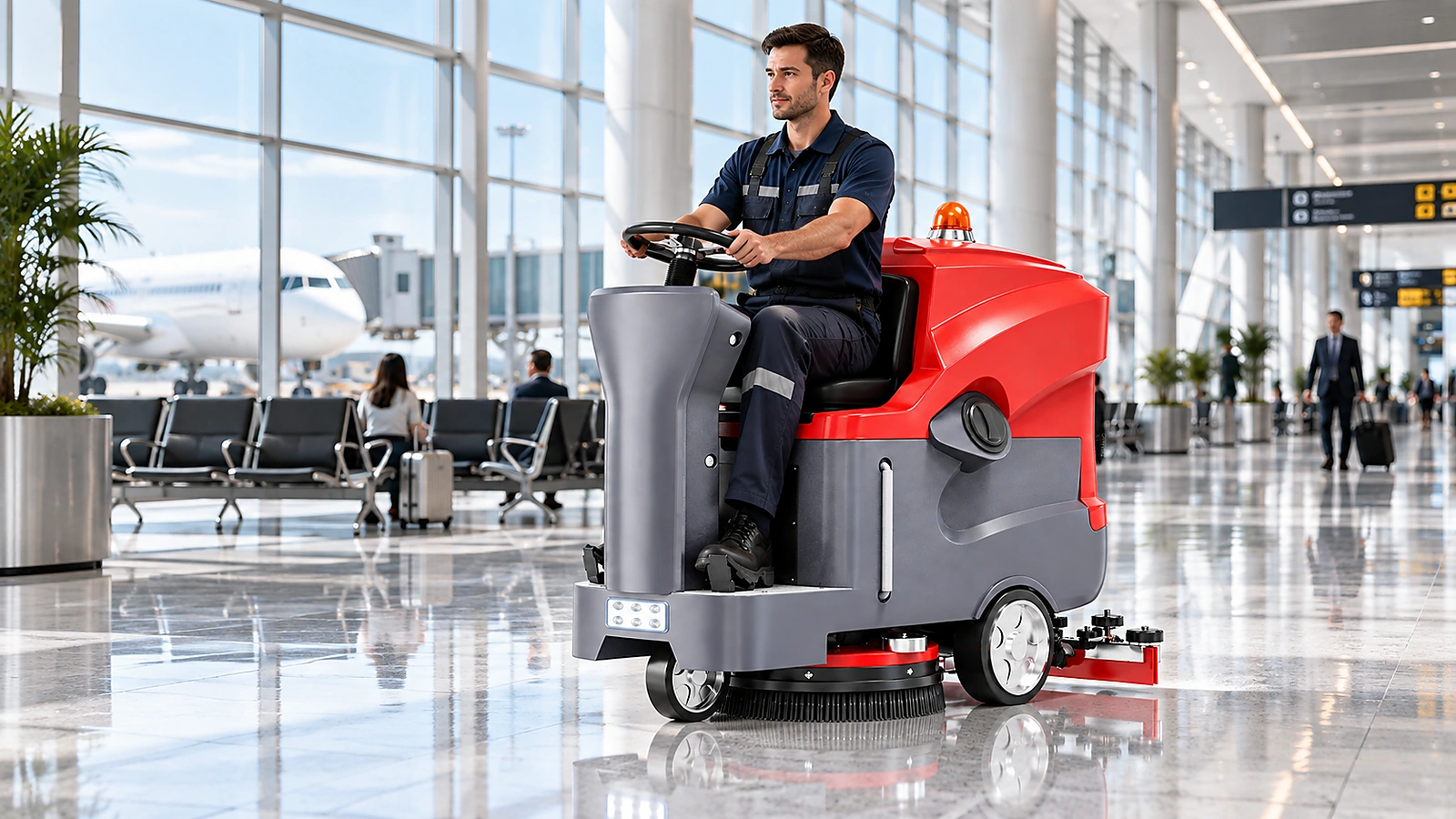

Airport

Product Video

Video loads only when you press play. External video services may use cookies.

Downloads

Sign in or create an account to view and download available technical documents.

Product BrochurePDF · 293.4 KB
User ManualPDF · 293.4 KB
Spare Parts ListPDF · 2.7 MB
CAD DrawingsSTP · 1.8 MB

Customer Reviews

—

No reviews yet.

Be the first to review this product

Share your experience with this machine. Published customer reviews will appear here.

Reviews are currently closed for this product.

FAQ

How do I choose the right floor scrubber for my facility?

Consider your cleaning area, floor material, aisle width and daily cleaning schedule. Share these details, along with photos of your floors, so we can help you select a suitable machine size, cleaning width, brush or pad, and power configuration.

What battery options are available, and how long will the machine run?

Battery options vary by model and may include lead-acid or lithium-ion configurations. Runtime and charging time depend on the selected battery, charger and operating conditions. Please check the specifications for your chosen configuration or tell us your daily operating hours for a suitable recommendation.

Will the machine or charger work with my local power supply?

Please specify your country, supply voltage, frequency and required plug type when ordering. We will confirm the compatible machine or charger configuration before your order is finalized. For battery-powered models, the battery voltage and the charger’s AC input voltage are separate specifications.

How do I order replacement parts and consumables?

Provide the machine model, serial number and a photo or part number of the item you need. Common wear items include brushes, pads and squeegee blades. Replacement intervals depend on floor conditions and usage. Please confirm compatible parts, prices and availability when placing your order.

What warranty and after-sales support are available?

Please refer to the warranty terms supplied with your quotation or order for the coverage period, included components and exclusions. For assistance, send us the machine model, serial number and photos or a short video of the issue so we can review the appropriate next steps.

What are the delivery times and international shipping costs?

Lead times depend on the model, configuration, order quantity and stock availability. Share your delivery address or destination port for a shipping quotation and estimated transit time. Shipping charges, import duties and taxes are excluded unless expressly included in your quotation.

Need a Custom Solution?

Tell us your cleaning requirements. Our team will help you choose a suitable machine and configuration.
